Porcelain Insulator

Insulators, often referred to as dielectrics, are indispensable components in the realm of electrical engineering. Their primary function is to prevent the flow of electrical current, acting as barriers that ensure controlled and efficient energy transmission. This article sheds light on the significance of insulators, their types, materials, and applications in various electrical systems.

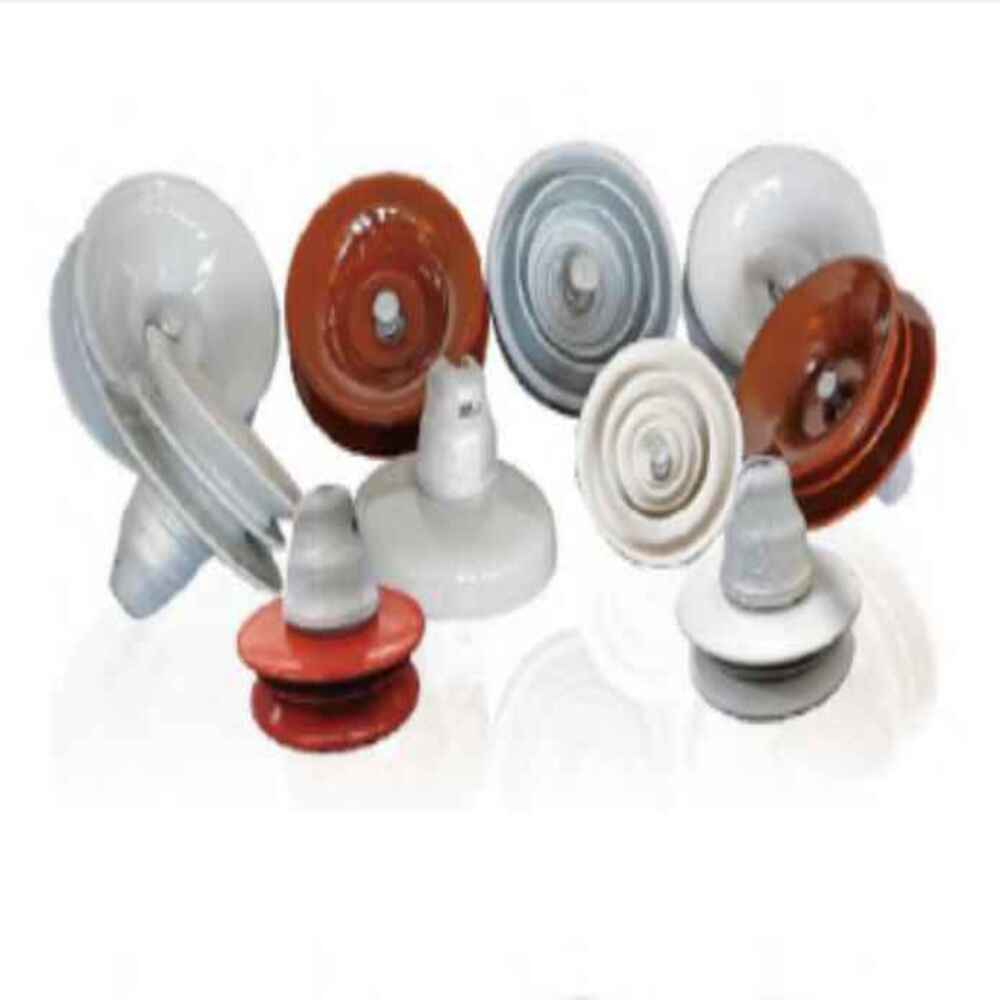

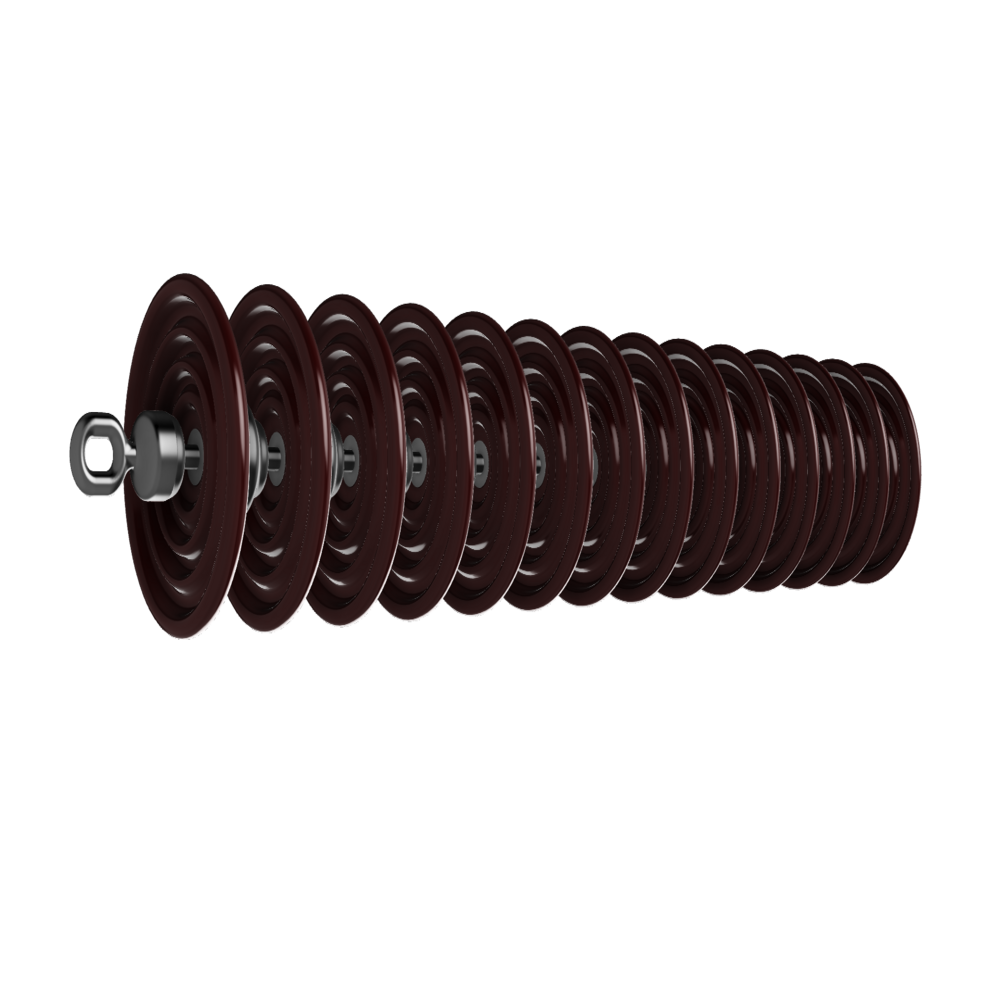

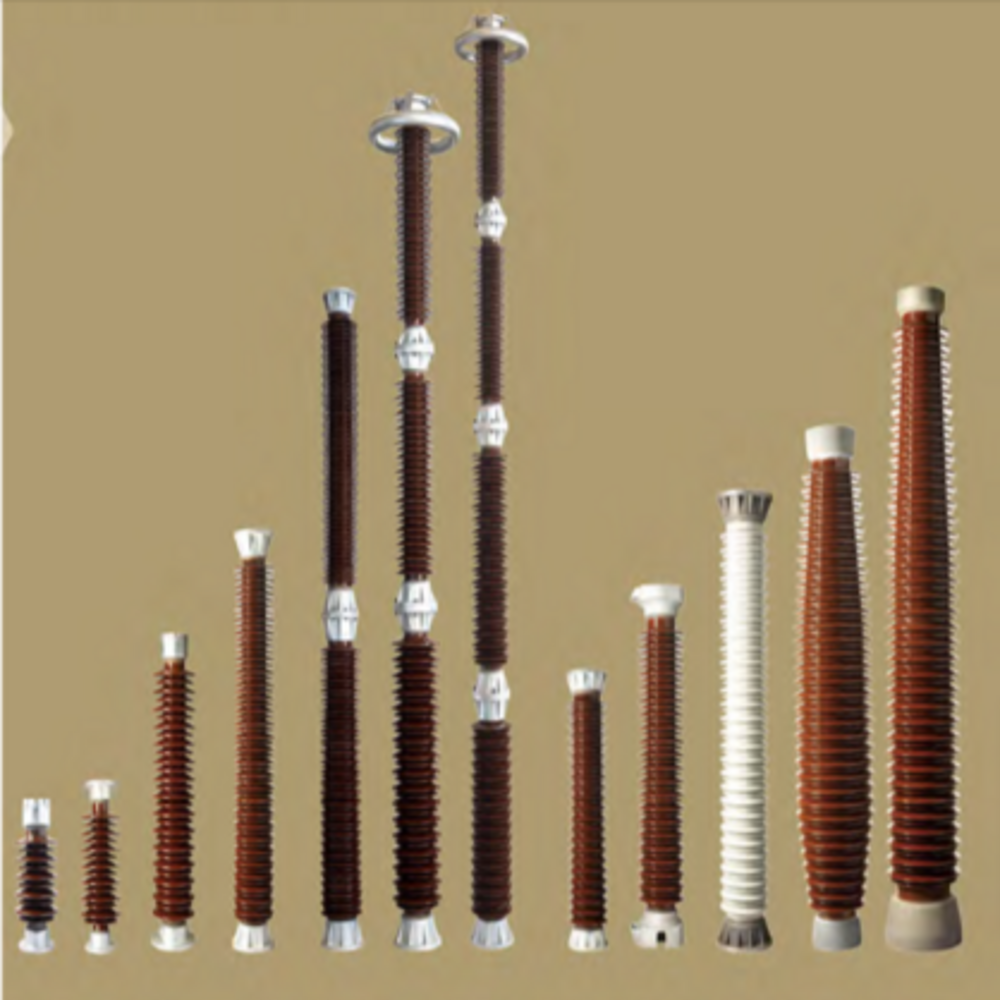

Porcelain insulators are widely used in electrical power systems to support and insulate high-voltage conductors. Made from a type of ceramic material, porcelain insulators are known for their excellent electrical and mechanical properties. They come in various shapes and sizes, such as pin insulators, suspension insulators, and post insulators, each designed to meet specific application requirements in power transmission and distribution systems.

• Porcelain Insulators: Known for their durability and resistance to high temperatures, porcelain insulators find applications in power transmission lines, substations, and heavy-duty electrical equipment.

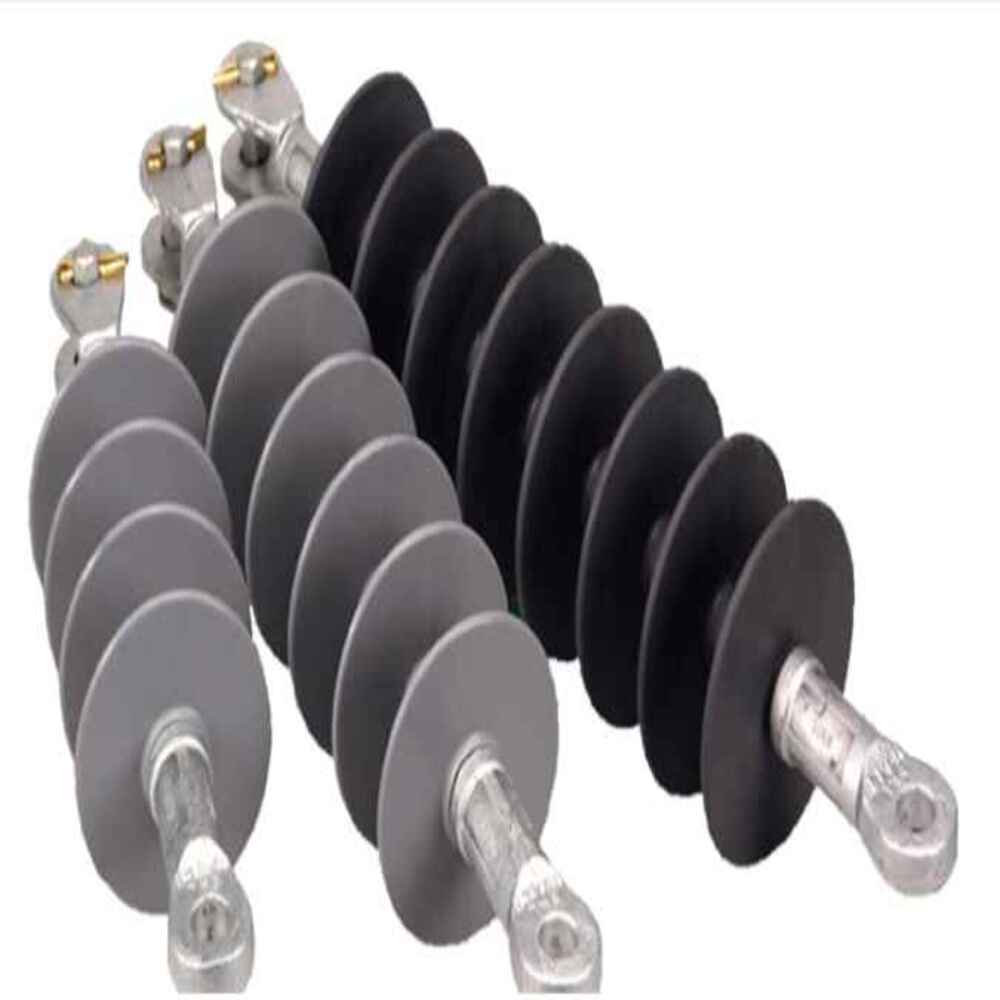

• Polymer Insulators: Lightweight and resistant to environmental factors, polymer insulators are preferred for areas with pollution, salt, and other contaminants. They are commonly used in distribution networks and high-voltage transmission lines.
• High Dielectric Strength: Porcelain has excellent dielectric properties, making it highly effective in preventing electrical discharges and maintaining insulation under high-voltage conditions.
• Mechanical Strength: Porcelain insulators are robust and can withstand significant mechanical stresses, including the tension of the conductor, wind load, and other environmental forces. This durability ensures the stability and reliability of power lines.
• Weather Resistance: Porcelain is highly resistant to weathering and environmental conditions such as rain, snow, and UV radiation. This resistance ensures a long service life and consistent performance in various climates.
• Resistance to Pollution: The glazed surface of porcelain insulators helps reduce the accumulation of dirt and contaminants. This feature is particularly important in industrial and coastal areas where pollution levels are high.
• Thermal Stability: Porcelain has good thermal stability, which means it can withstand temperature fluctuations without cracking or deteriorating. This ensures reliable performance across a wide range of temperatures.
• Fire Resistance: Porcelain is inherently fire-resistant, making it a safe choice for use in power systems where fire hazards might be a concern.
